Thông tin chi tiết sản phẩm:
|
| Nhiệt độ thiết kế: | Dựa trên nhu cầu của khách hàng | Loại đầu: | Vỏ xi lanh bể thép cuộn |
|---|---|---|---|
| Kỹ thuật: | Giả mạo | Giấy chứng nhận: | ISO9001, PED, vv |
| Tiêu chuẩn: | ASME, PED, TUV, v.v. | Đường kính đầu tàu: | Theo yêu cầu của khách hàng |
| Bưu kiện: | Vỏ gỗ, pallet, v.v. | Áp lực thiết kế: | Dựa trên nhu cầu của khách hàng |

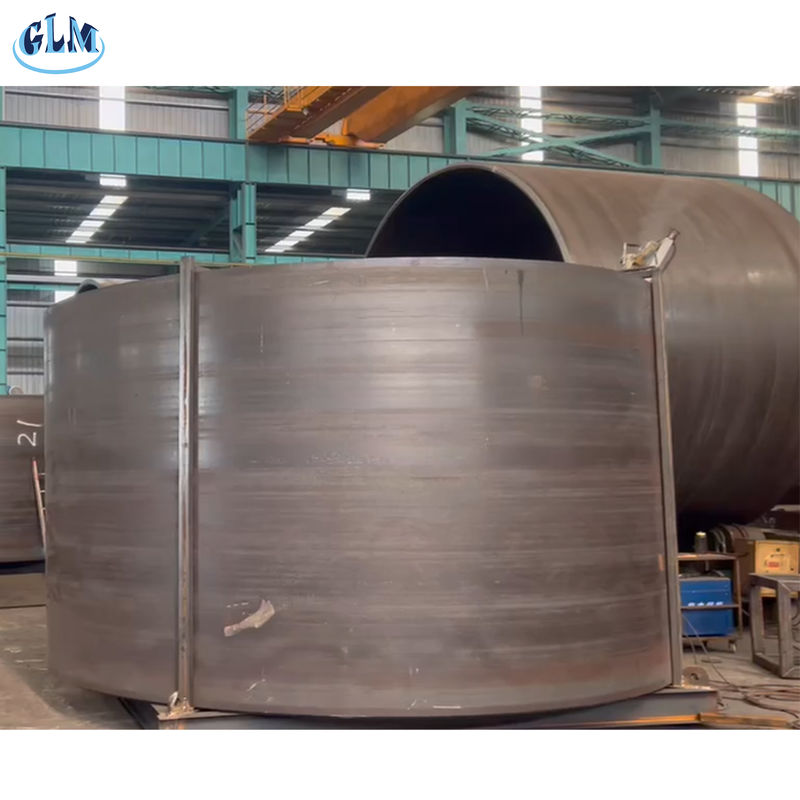

Forming process: Metal plates (e.g., carbon steel, stainless steel) are shaped into a cylindrical structure using mechanical rolling (cold rolling for thin plates ≤12mm, hot rolling for thick plates ＞12mm). The rolling ensures uniform curvature to avoid local deformation.
Dimensional precision: Inner/outer diameter, wall thickness, and straightness meet industry standards (e.g., GB 150, ASME BPVC), with typical diameter tolerances of ±1‰ to ensure compatibility with dish heads (e.g., elliptical heads) at both ends.
High pressure-bearing capacity: The cylindrical shape evenly distributes internal/external pressure (lower stress concentration than rectangular structures), suitable for low-to-high pressure scenarios (0.1MPa–10MPa).
| Technics | Forged |
| Package | Wooden Case, Pallet, Etc. |
| Application | Boiler, Heat Exchanger, Power, Etc. |
| Vessel Head Thickness | According To Customer Requirements |
| Product Name | Steel Tank Cylinder Shell Rolled, Heavy Thick Tight Steel Rolling |
| Certificate | ISO9001, PED, Etc. |
| Grade | Carbon Steel, Aluminum, Stainless Steel SA240 316/316L |
| Forming method | Hot Forming, Cold Forming |
| Vessel Head Diameter | According To Customer Requirements |
| Head Type | Steel Tank Cylinder Shell Rolled |
The following industries benefit from our products and services:
Q: What is the brand name of the Pressure Vessel Dished Head product?
A: The brand name is GLM.
Q: What is the model number of the Pressure Vessel Dished Head product?
A: The model number is Cap.
Q: Where is the Pressure Vessel Dished Head product manufactured?
A: The product is manufactured in China.
Q: What certifications do the Pressure Vessel Dished Head product have?
A: The product is certified with ASME U, U3, U2, PED, ABS, TUV, NB, and ISO.
Q: What is the minimum order quantity for the Pressure Vessel Dished Head product?
A: The minimum order quantity is 1.
